PANDUIT DNF14-250M-C Male Disc,Nickel,Copper,Nylon,PK100 39AY54

Specifications

Male Disconnect, Contact Finish Nickel, Contact Material Copper, Disconnect Style Tab, Insulation Color Blue, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Tab, Termination Style Crimp, UL 94 Flammability Rating HB, RoHS Compliant Yes, Seam Style Sleeved Barrel Disconnect does not require tools to be inserted or removed from the male tab.

Related Items

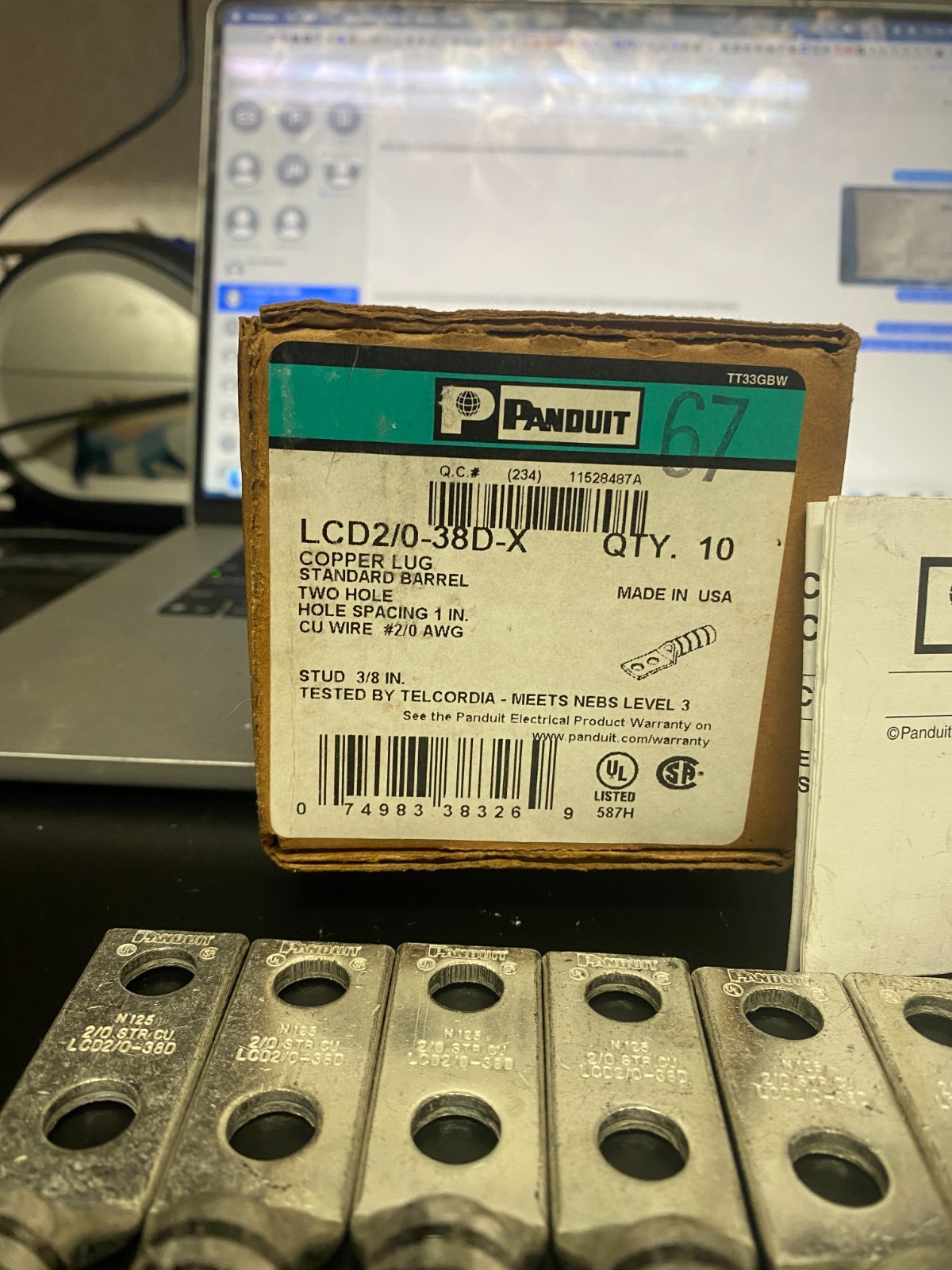

Panduit LCD2/0-38DX, 2/0 AWG Copper, 3/8″ Stud, Compression Cable Lug, 9 pieces

PANDUIT® 16-14 AWG Non-Insulated Ring Terminal #8 Stud Qty 94

500/100PCS Waterproof Solder Seal Sleeve Heat Shrink Butt Wire Connectors KIT

Panduit Dnf18-250M-C Wiredisconnect, Copper, Red, Nylon, Pk100

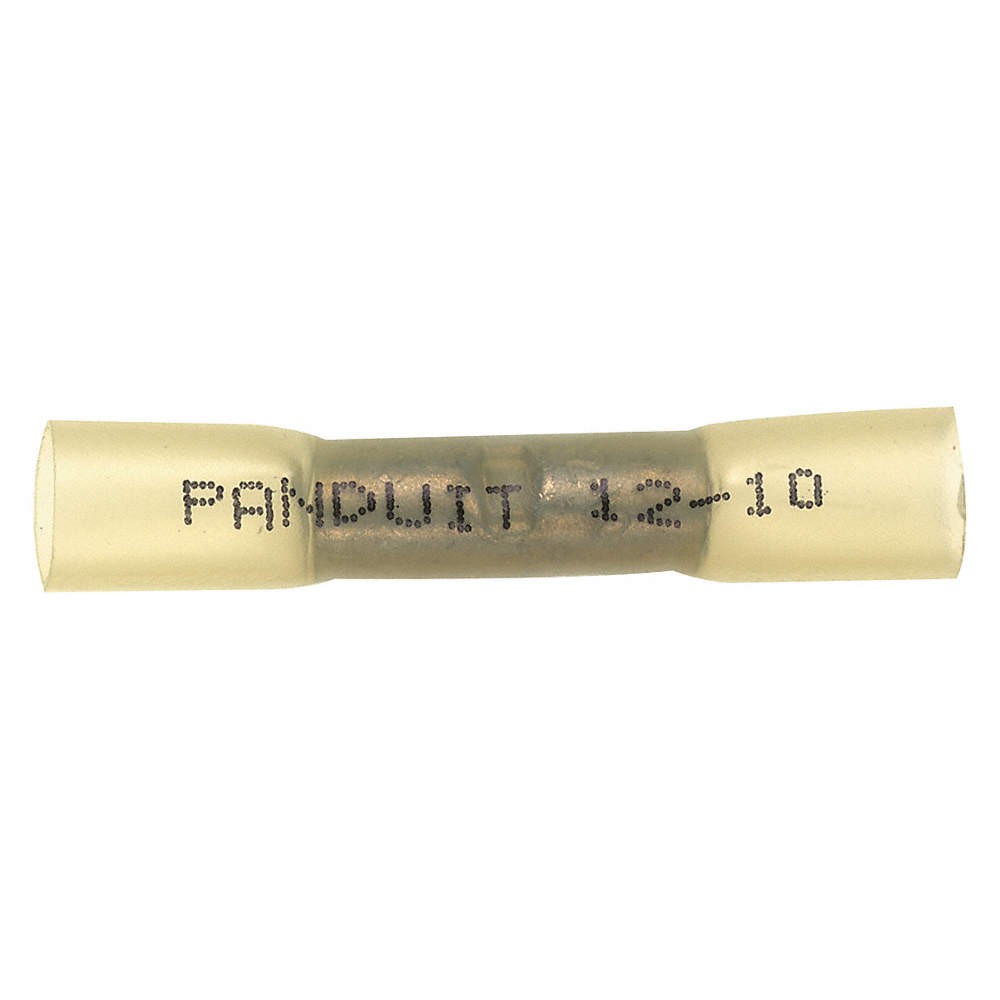

PANDUIT BSH10-E SpliceCon,Crimp,Polyolefin,Yellow,PK20 39AY18

Panduct LCAF4/0-12 Flared Copper Compression Lug 1-Hole 4AWG 1/2″ Stud New

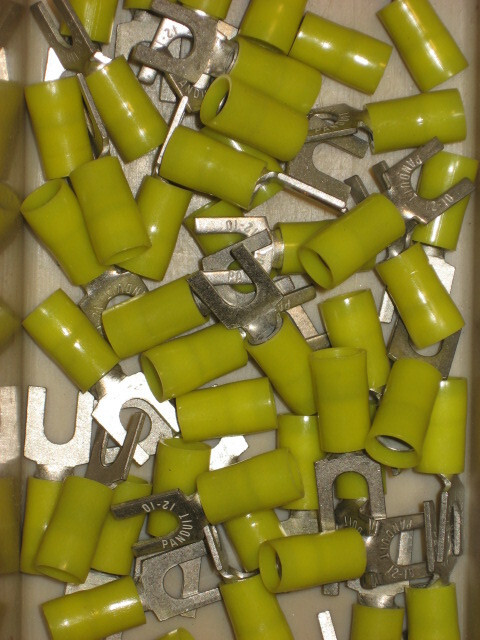

Spade Lugs, made by Panduit, qty of 10, new

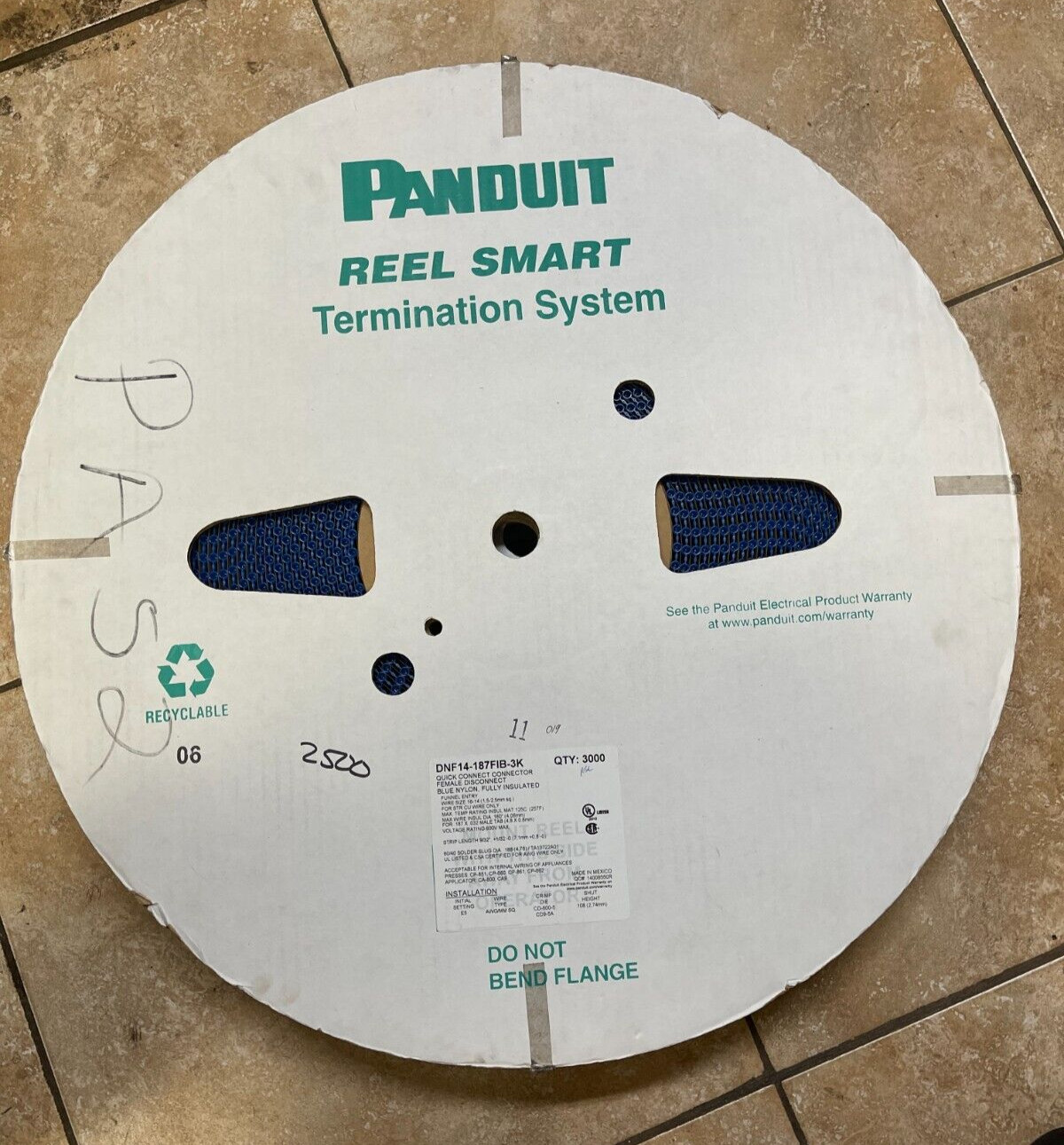

Panduit Nylon Fully Ins. Female Quick Connector 16-14 Gauge .187 Tab – 2800 Pack
