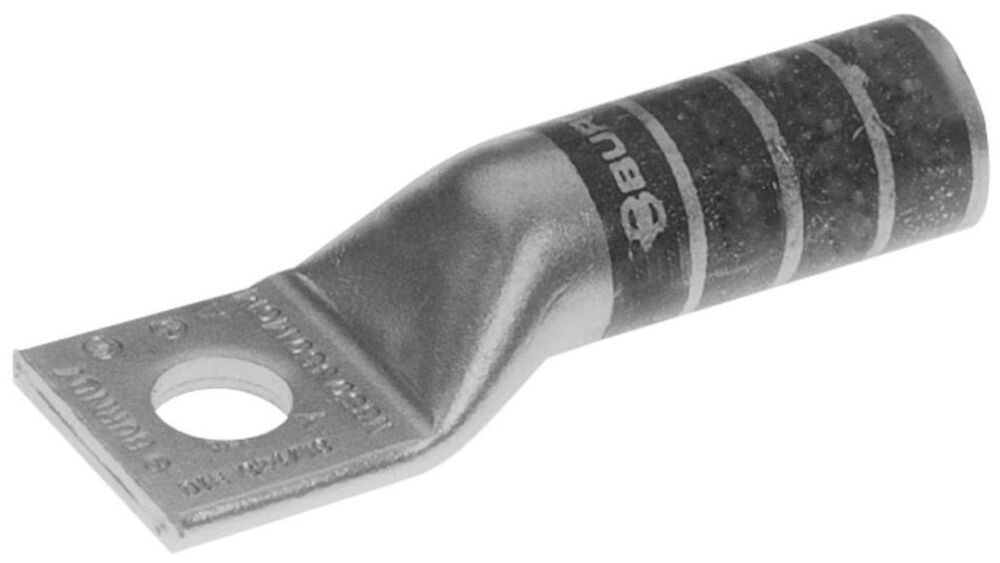

Burndy YA28N, 4/0 AWG Str Copper, 1/2″, 1-Hole, Compression Terminal, 1 pc

Specifications

Compression Terminal; Voltage Rating 35 Kilovolt; Conductor Material Copper; Conductor Size 4/0 AWG Stranded (Code), 200 (Navy); Barrel Type Long, Straight, Non-Insulated; Barrel Length 1.62 Inch; Pad Size 1.02 Inch Width x 0.14 Inch Thickness; Number of Pad Holes 1; Stud Size 1/2 Inch; Color Purple; Die Index 15; Material Electro Tin Plated Copper; Overall Length 3.41 Inch; Approval UL 486A/B, CSA; RoHS Compliant; Cable Entry Type Chamfered; Wire Strip Length 1-11/16 Inch; Temperature Rating 90 Deg C; Excludes Inspection Window; Application Copper Compression Connection.

Related Items

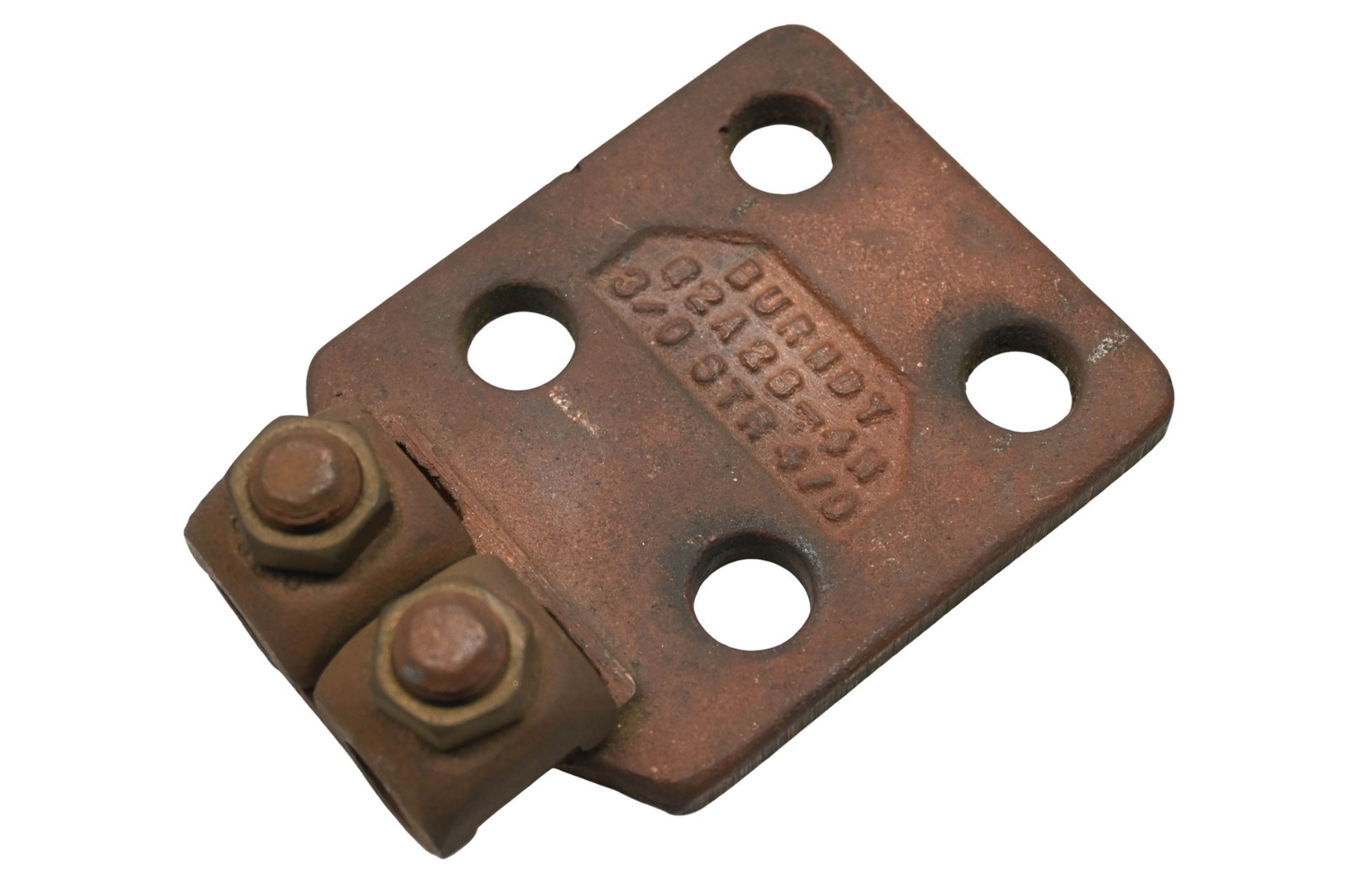

Burndy Q2A28-4N, Q2A284N Terminal Lug Assembly

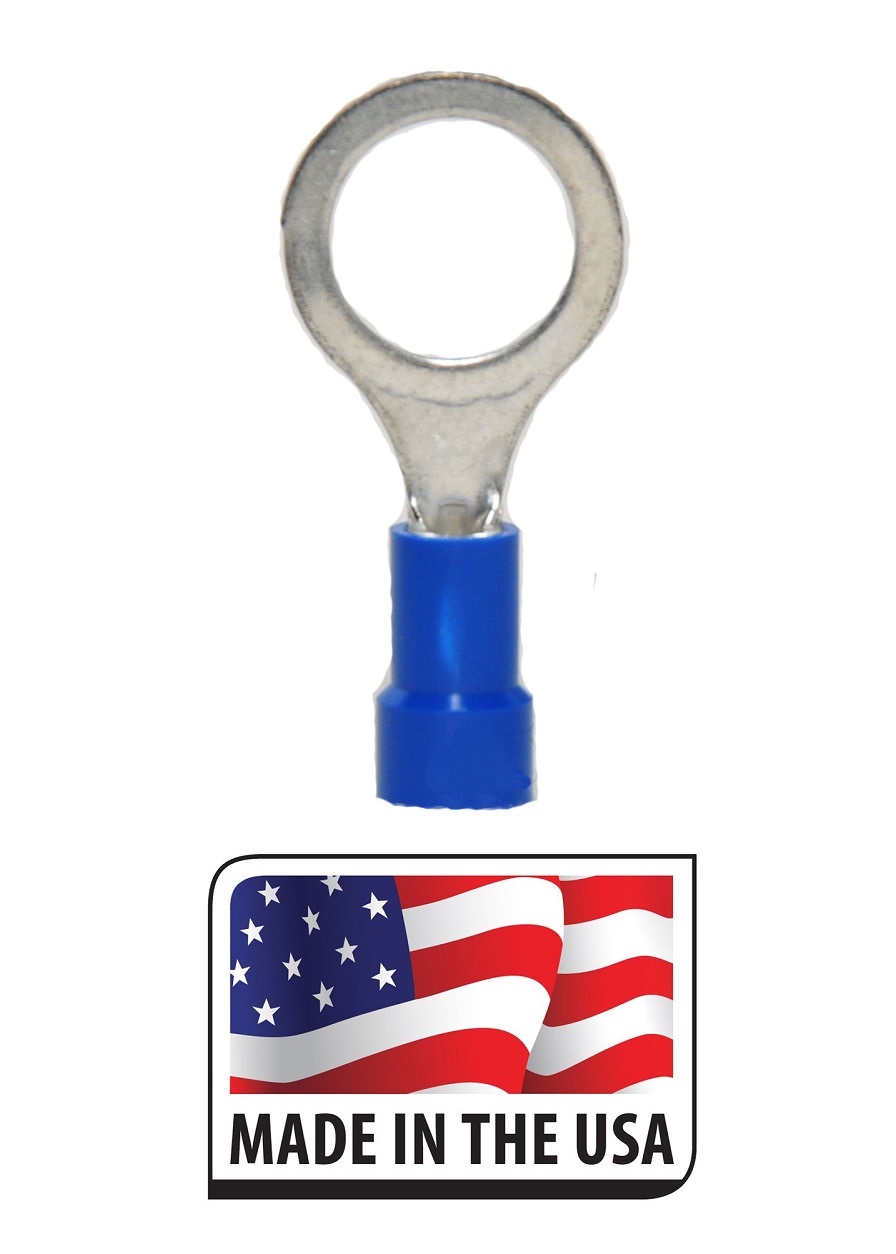

(100) 16-14 BLUE VINYL 1/2 INCH RING ELECTRICAL CONNECTOR TERMINAL MADE IN USA

5PCS 1 Aauge 1/2″ Ring Terminal Battery Lug Bare Copper Un-insulated Cable AWG

(1) *NEW* BOX OF 50, BURNDY SP14 509201 WIRE CONNECTOR 16/14 AWG

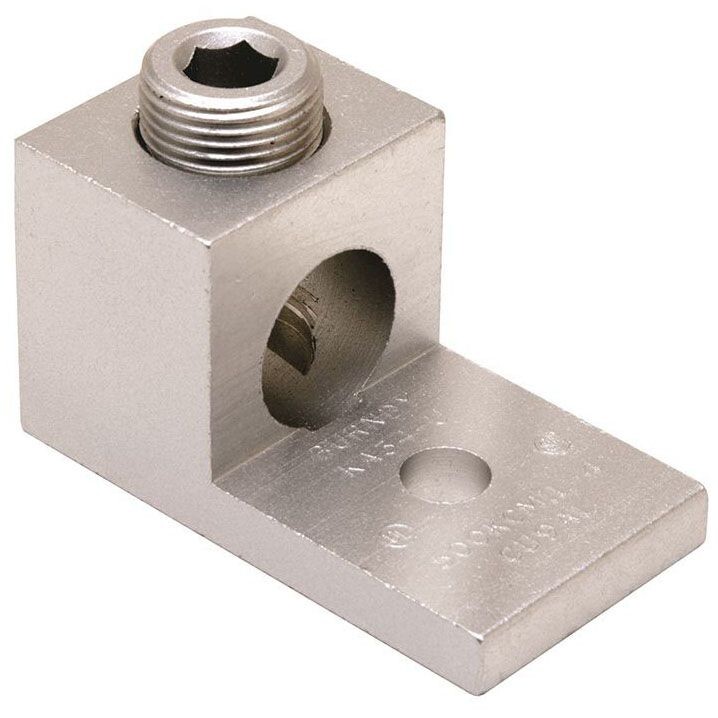

Burndy KA29U, 6 AWG to 250 KCMIL Stranded, 5/16″ Stud, Mechanical Lug, 1 pc

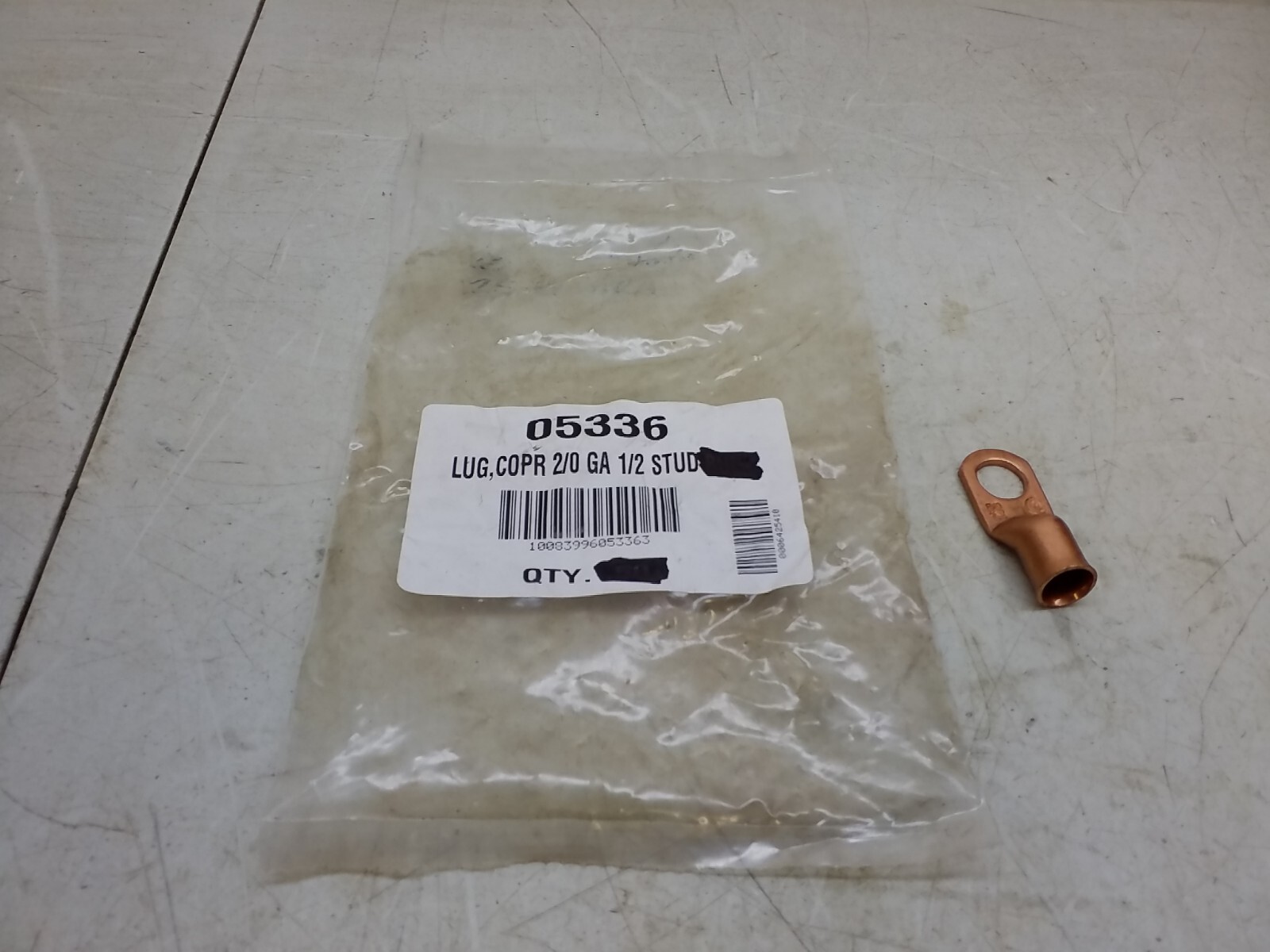

05336 2/0 Gauge Copper Lug 1/2 ” Battery Stud 05336 Quantity Of 1 Stud

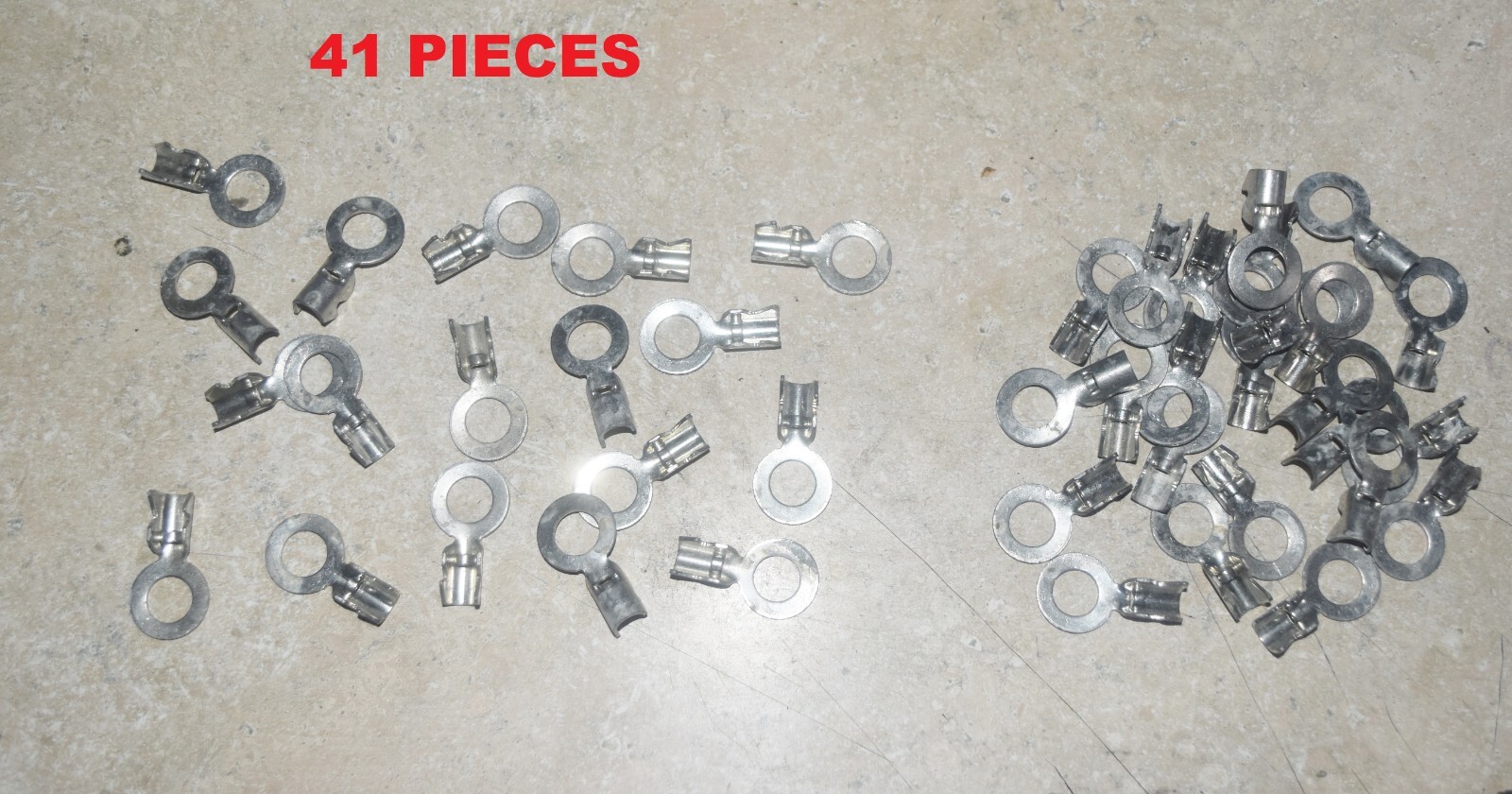

METAL Wire terminal CRIMP connectors 41 PIECES Non-Insulated Ring type 1/2 INCH
