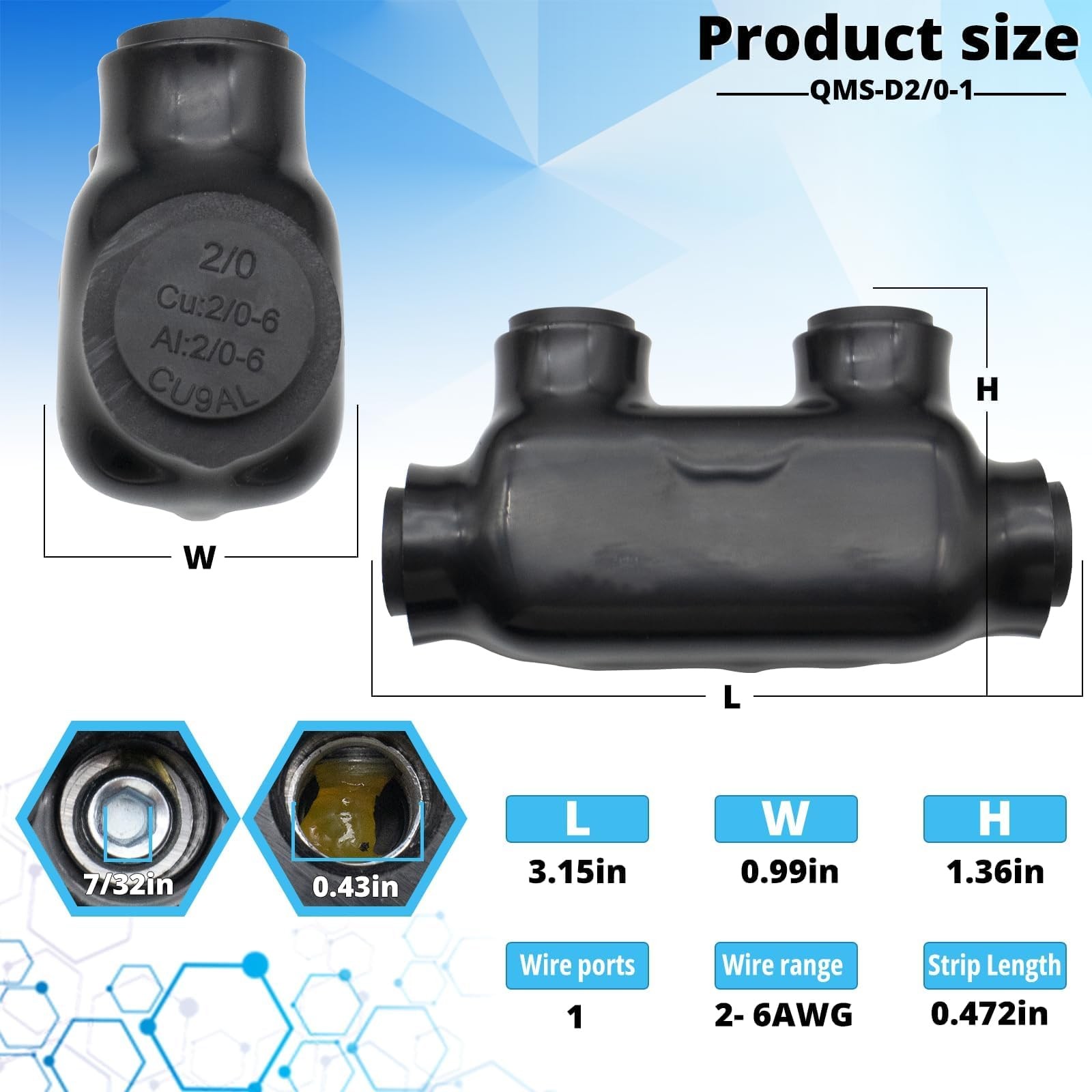

2/0-6 Wire Range Black Insulated in-Line Splice Connector 3.36”L x 1.08”W x 1…
USD 17.23 USD

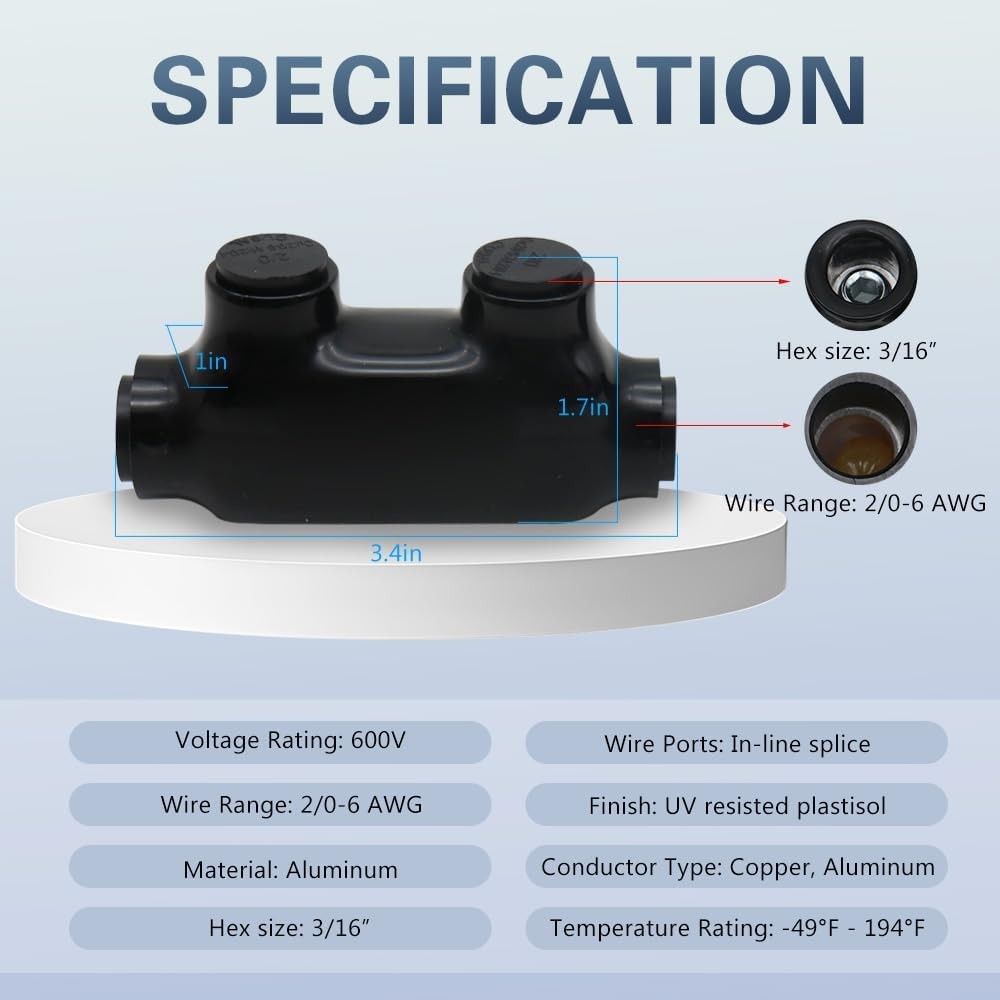

Specifications
| Temperature Rating | -49-194℉ |
| Package Dimensions LxWxH | 4.72x2.17x1.65 Inches |
| Part Number | At-Qms-D2/0-1-1Pcs |
| Unit Count | 1.0 |
| Size | 1Port-1Pc |
| Color | Black |
| Terminal Type | Screw Terminal |
| Lower Temperature Rating | -49.0 |
| Material | Aluminum, Vinyl |
| Model Number | At-Qms-D2/0-1-1Pcs |
| Maximum Voltage | 600.0 |
| Weight | 0.24 Pounds |
| Insulation Material | Polyvinyl Chloride |
| Stud Size | 0.1875 Inches |
| Contact Material | Brass |
| Connector Type | In-Line |
| Style | 2/0-6Awg |

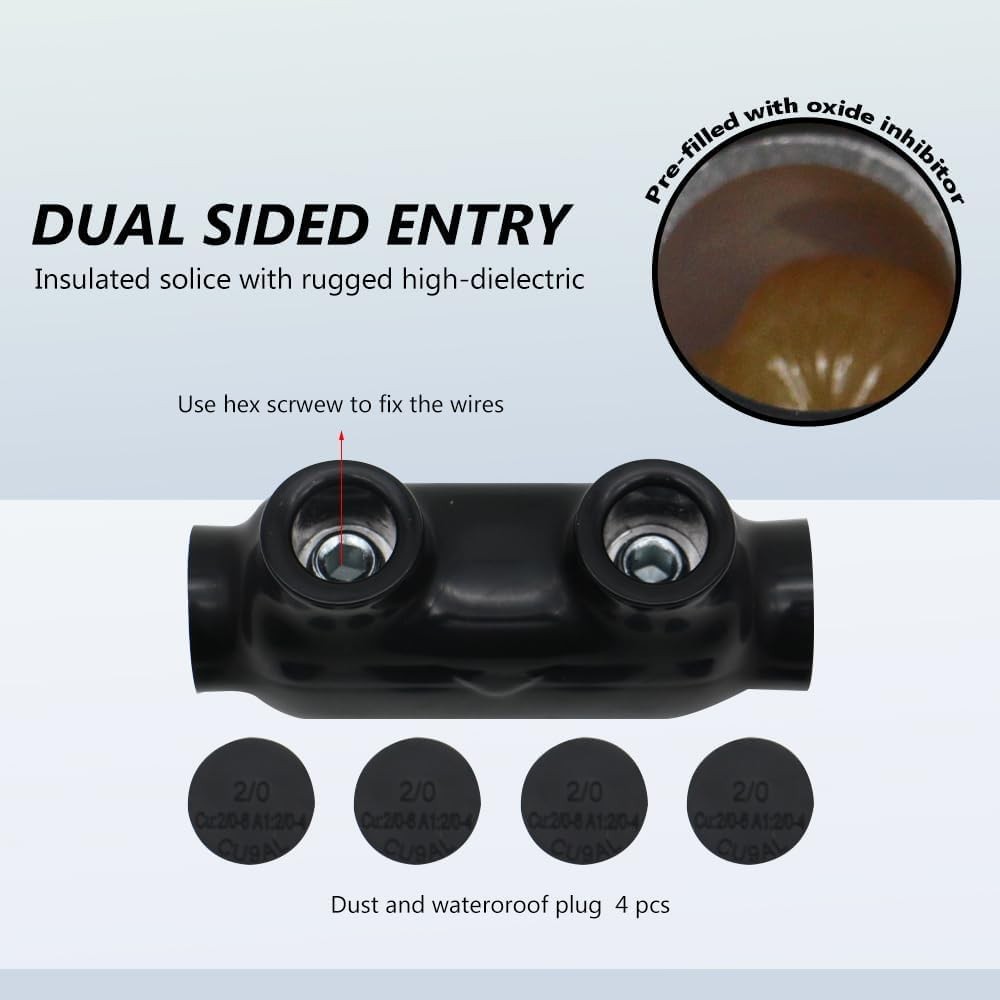

【Product Standard】Black Insulated in-Line Splice Connector Suitable for 2/0-6AWG copper wire and 2/0-4AWG aluminum wire. The size of the hex screw used for fixing is 3/16". Insulated throughout with high dielectric strength rubber and vinyl coating for copper and aluminum wires, and prepped with internal lubricants for oxidation resistance, insulated connectors are designed to withstand temperatures from -49 to 194 degrees Fahrenheit, and the 600V cable conductors are aluminum CU9AL dual rated for copper and aluminum wires.
