100PC Insulated Ferrule Copper Crimp Cord End Electrical Wire Connector Terminal
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | Chanzon |
| MPN | Dose not apply |

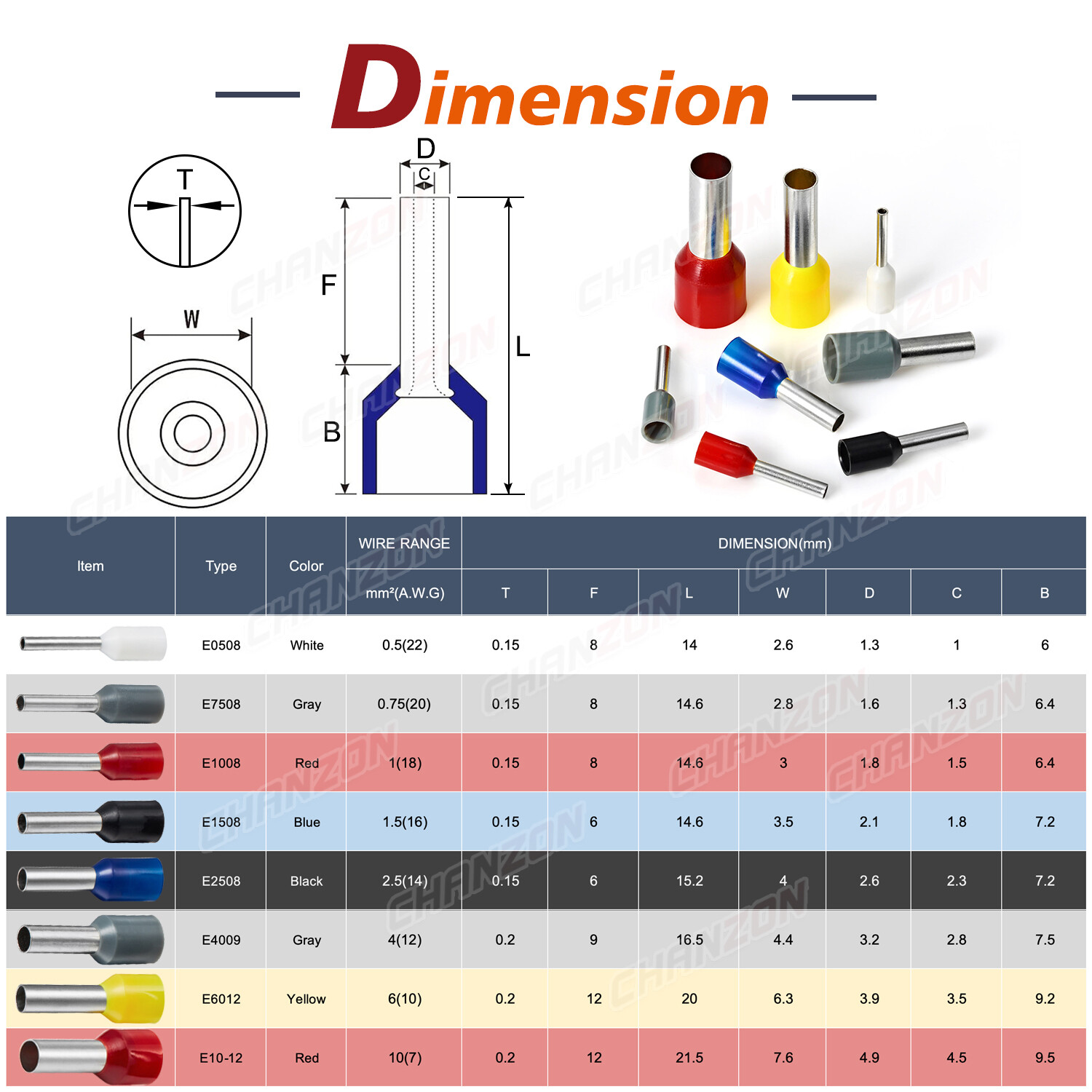

| E0508 | 22Awg(0.5mm²) |
| E7508 | 20Awg(0.75mm²) |
| E1008 | 18Awg(1mm²) |
| E1508 | 16Awg(1.5mm²) |
| E2508 | 14Awg(2.5mm²) |
| E4009 | 12Awg(4.0mm²) |
| E6012 | 10Awg(6.0mm²) |
| E10-12 | 7Awg(10mm²) |
| Material | PP. Tinned, Red Copper |
| Rated Voltage | 300V |
| Certificate | Iso9001/Iatf 16946/Rohs |
| Maintain Temperature | 105Deg.C |
| Short Time Temperature | 120Deg.C |
100PC Insulated Ferrule Copper Crimp Cord End Electrical Wire Connector Terminal Description: Product Name:Copper Insulated Ferrule Terminal Material:PP,Tinned,Red Copper E0508:22Awg(0.5Mm²) E7508:20Awg(0.75Mm²) E1008:18Awg(1Mm²) E1508:16Awg(1.5Mm²) E2508:14Awg(2.5Mm²) E4009:12Awg(4.0Mm²) E6012:10Awg(6.0Mm²) E10-12:7Awg(10Mm²) Rated Voltage:300V Feature: -Easy Installation, And A Low Installed Cost, Which Is More Reliable Than Conventional Crimp Terminals. -In The Middle Of The Splice Is High Red Copper Tube, It Is Relatively Soft And Easy To Crimp. -High Toughness, And Excellent Wear Resistance. -High Mechanical Strength, High Rigidity100PC Insulated Ferrule Copper Crimp Cord End Electrical Wire Connector Terminal Description: Product Name:Copper Insulated Ferrule TerminalMaterial:PP,Tinned,Red CopperE0508:22Awg(0.5Mm²)E7508:20Awg(0.75Mm²)E1008:18Awg(1Mm²)E1508:16Awg(1.5Mm²)E2508:14Awg(2.5Mm²)E4009:12Awg(4.0Mm²)E6012:10Awg(6.0Mm²)E10-12:7Awg(10Mm²)Rated Voltage:300V Feature:-Easy Installation, And A Low Installed Cost, Which Is More Reliable Than Conventional Crimp Terminals.-In The Middle Of The Splice Is High Red Copper Tube, It Is Relatively Soft And Easy To Crimp.-High Toughness, And Excellent Wear Resistance.-High Mechanical Strength, High Rigidity，With Excellent Conductivity Property.
